From a Local Excel File to NL2SQL Questions

Import an Excel workbook into Catalog, add the resulting table to a knowledge base, and ask questions in English. MOI generates SQL, queries the table, and summarizes the results.

This tutorial uses Microsoft’s public Financial Sample workbook, which includes countries, products, sales, profit, and dates.

Before you begin

• Sign in to MOI and use the English interface.

• Download Financial Sample.xlsx.

1. Import the Excel workbook

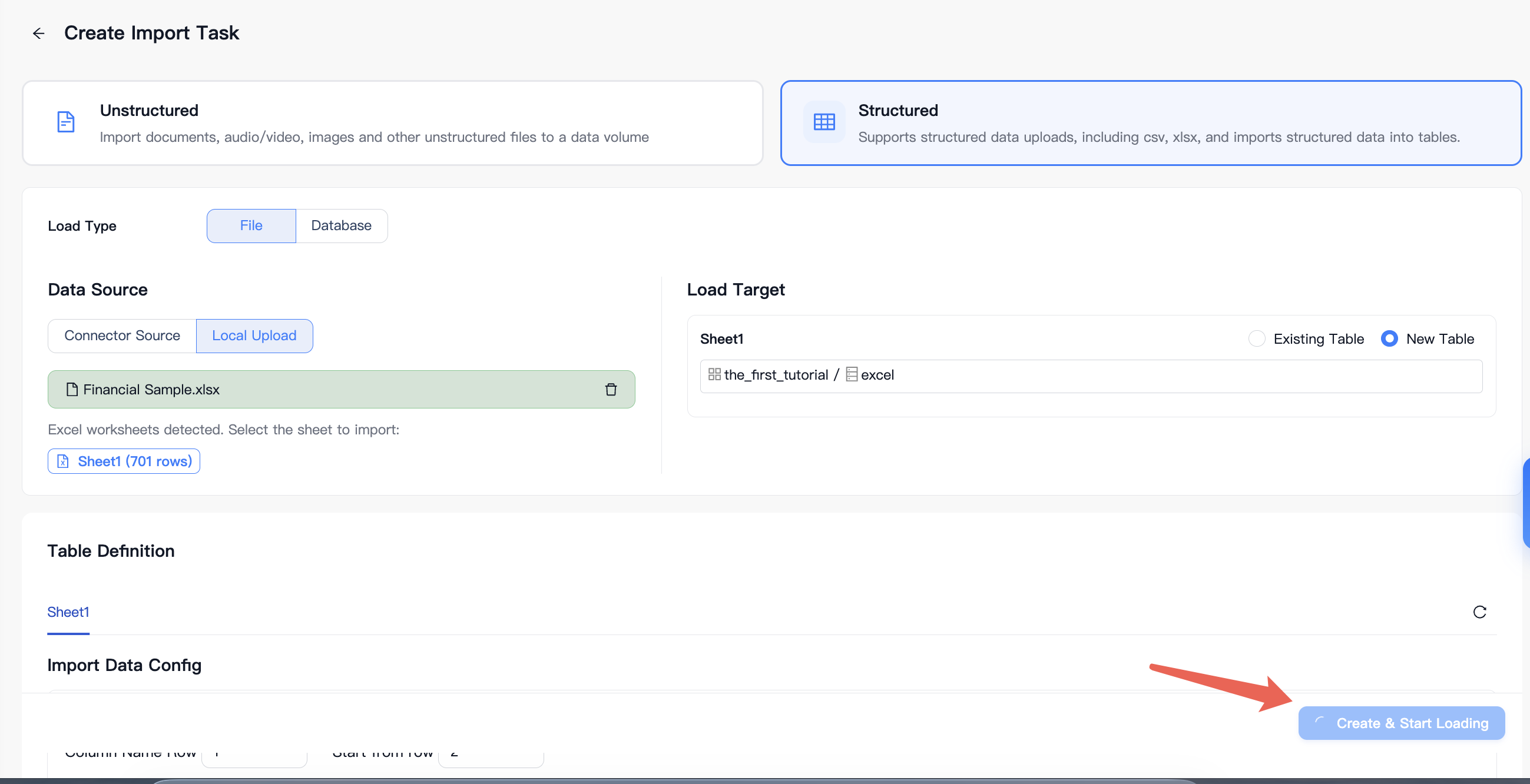

1. Open Data. Under Data Connection, open Import Tasks and click New Import Task.

2. Select Structured, keep Load Type set to File, and select Local Upload.

3. Upload Financial Sample.xlsx and select Sheet1. The worksheet contains 701 rows, including the header.

4. Under Load Target, select New Table and choose a Catalog and database. This example uses Catalog the_first_tutorial, database excel, and table sheet1. Use your own Catalog name if it differs.

5. In Table Definition, set Column Name row to 1 and Start from row to 2. Review the column names and types before importing. In particular, check how sales, profit, and year values will be stored.

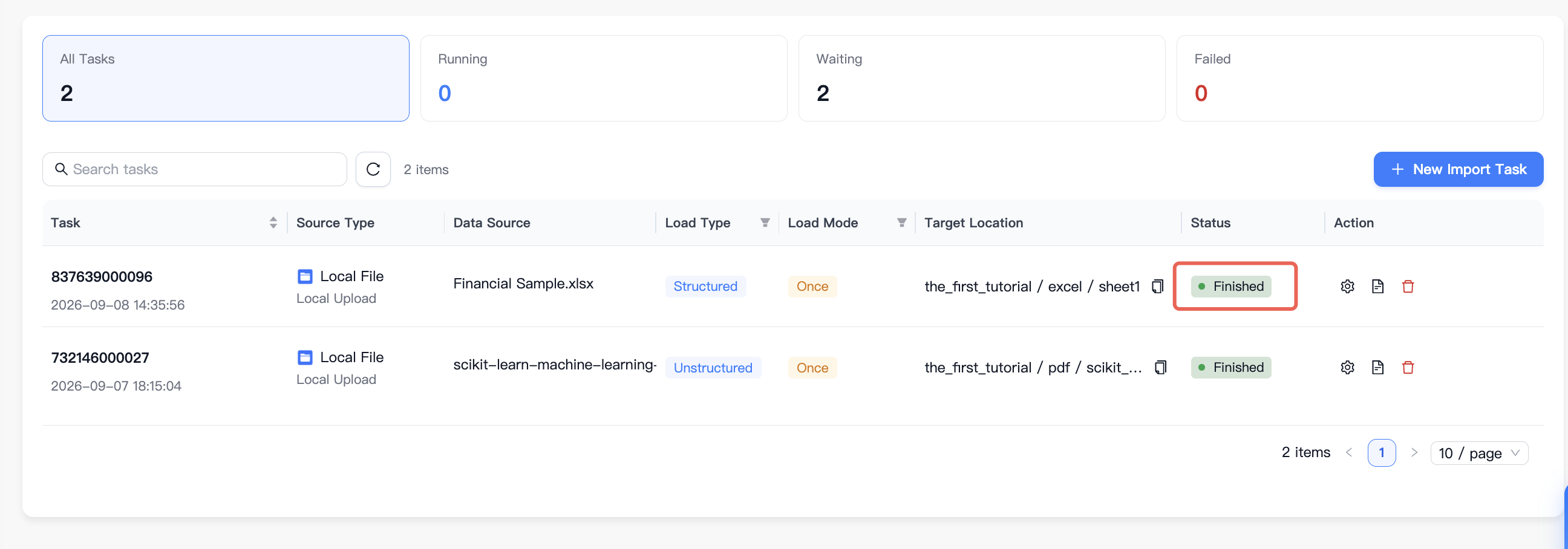

6. Click Create & Start Loading. Wait until the task status becomes Finished.

2. Create a knowledge base

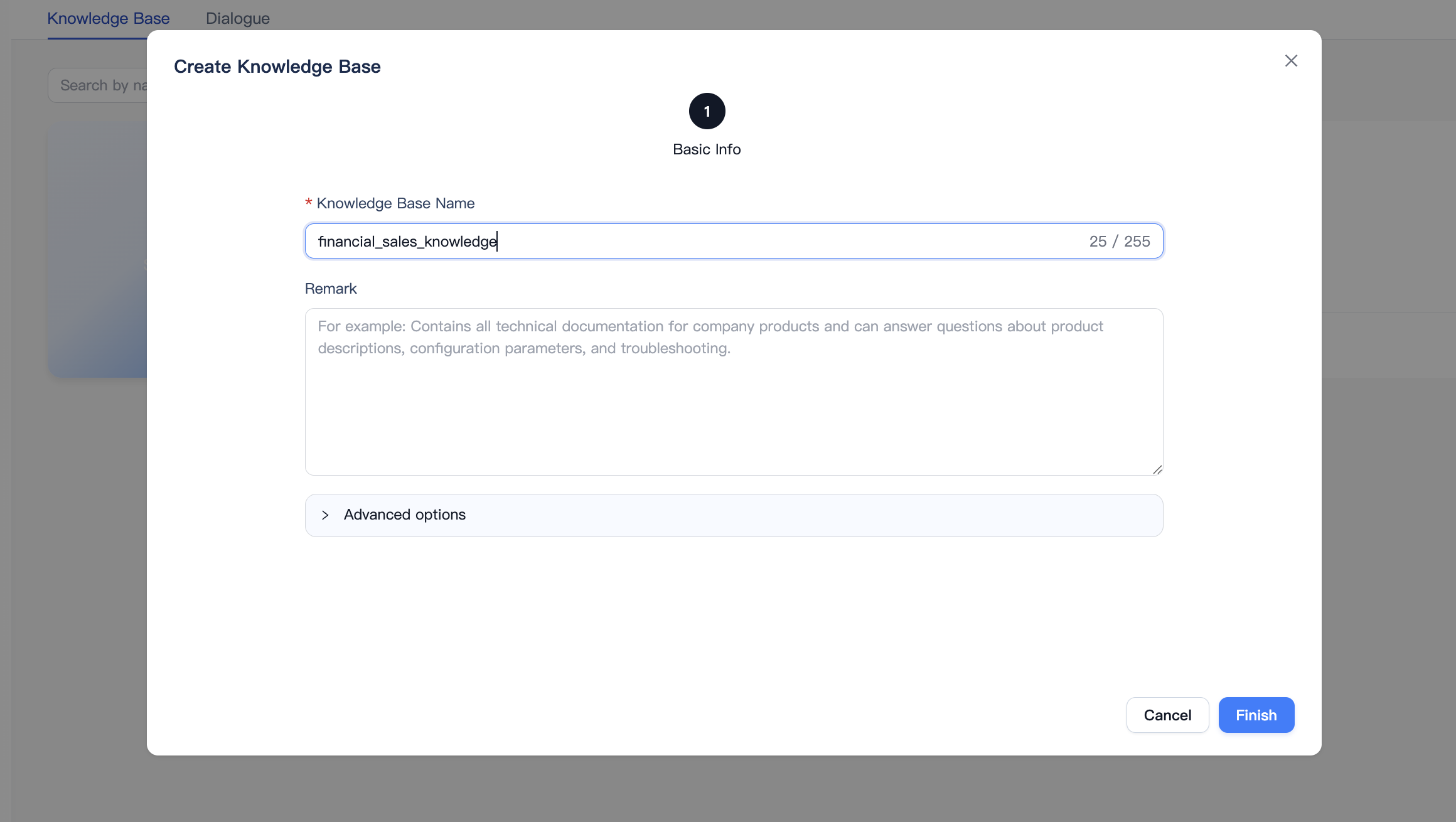

1. Under Resource Center, open Knowledge Base and click Create Knowledge Base.

2. Enter financial_sales_knowledge as the Knowledge Base Name. The Remark is optional.

3. Click Finish to open the new knowledge base.

3. Add the imported table

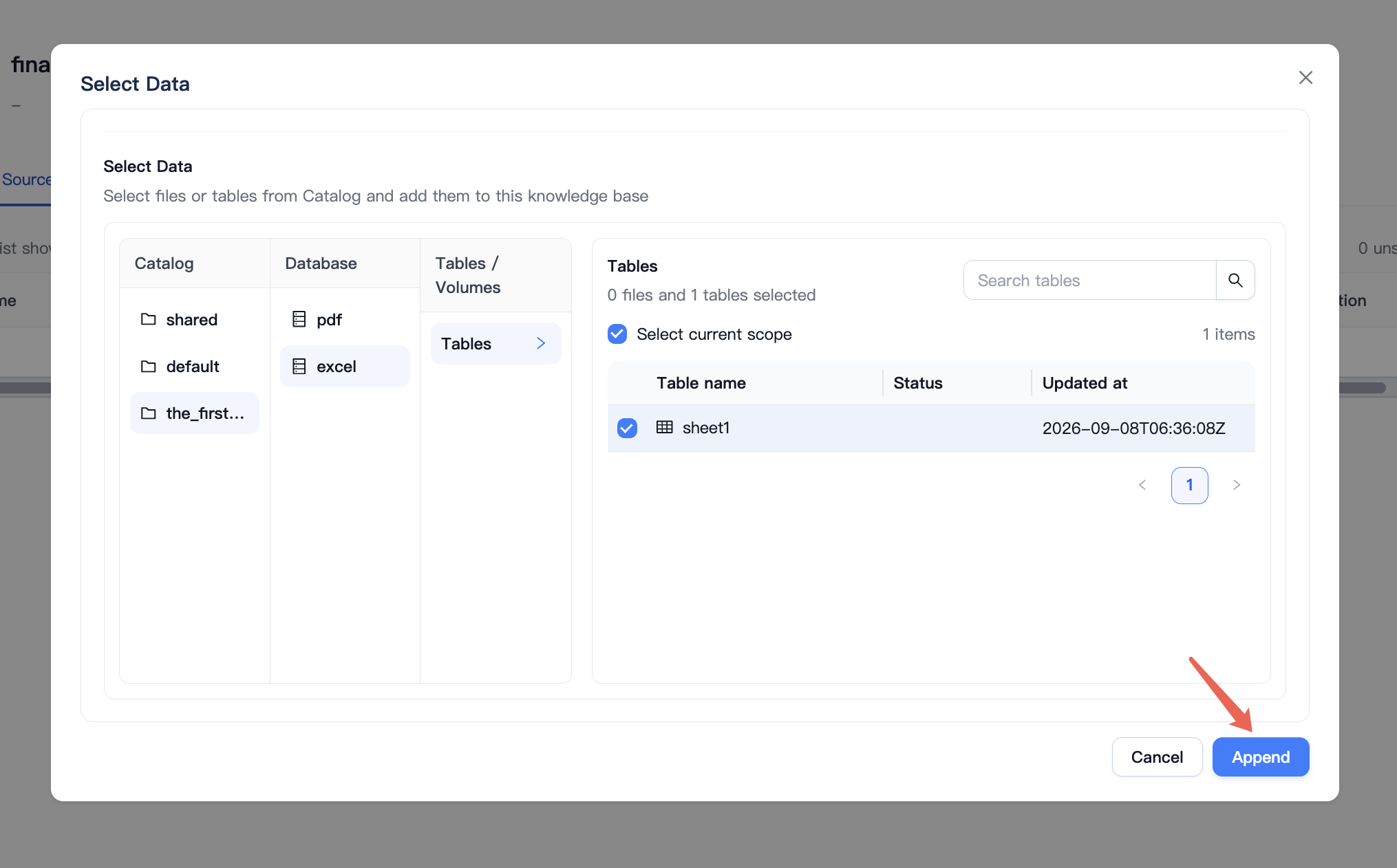

1. On the knowledge base’s Data Source tab, click Add Data.

2. Open your Catalog, select the excel database, and open Tables.

3. Select sheet1 and click Append.

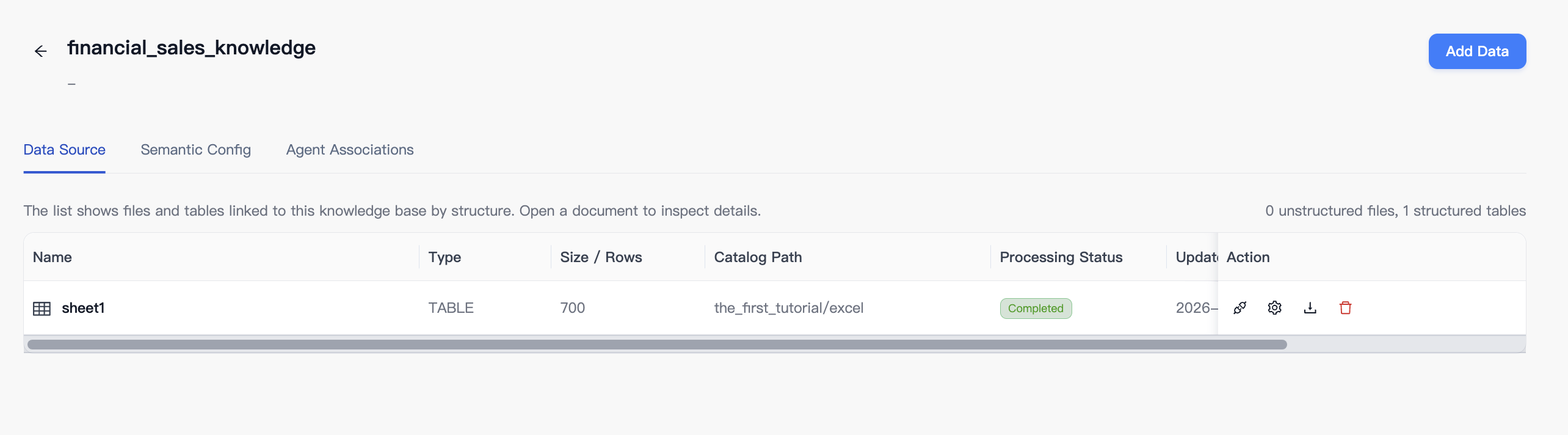

4. Confirm that the data source lists sheet1 with 700 rows and a Completed processing status.

4. Ask questions about the data

Open Dialogue in Knowledge Base. Use Select Knowledge to select financial_sales_knowledge if it is not already selected.

Send this question:

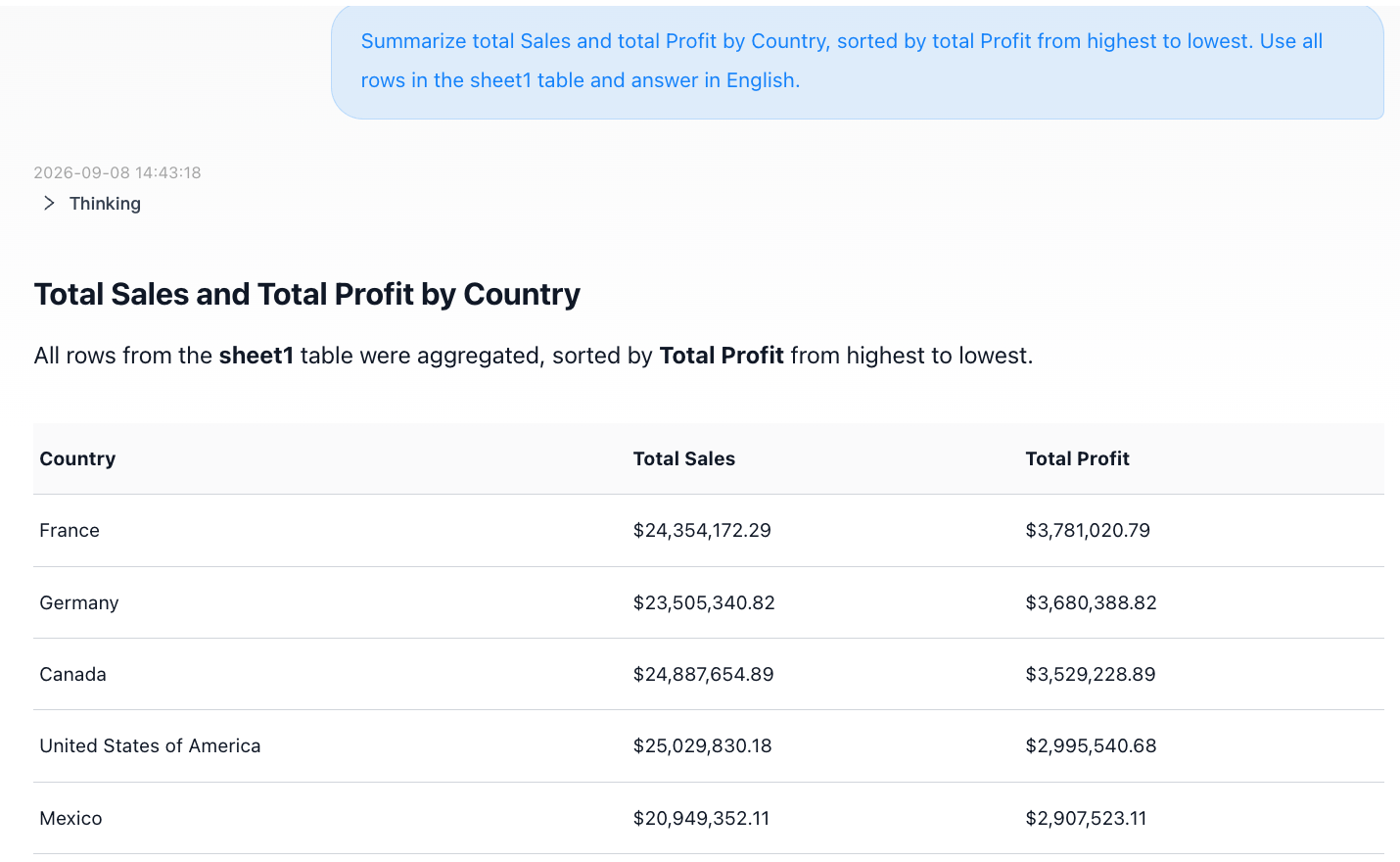

Summarize total Sales and total Profit by Country, sorted by total Profit from highest to lowest. Use all rows in the sheet1 table and answer in English.

MOI returns five countries ordered by total profit: France, Germany, Canada, United States of America, and Mexico. Check the table, the requested sort order, and the table reference returned with the answer.

Then ask:

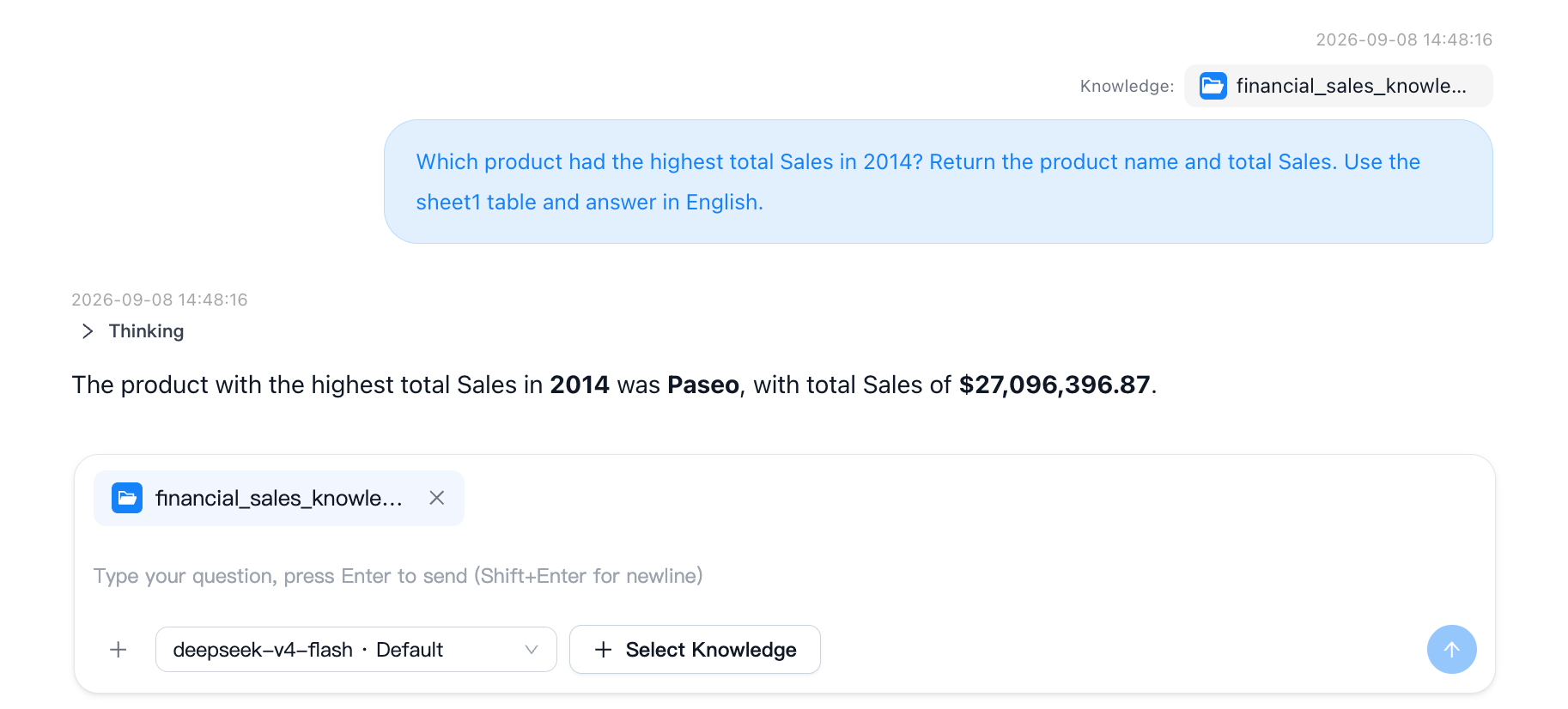

Which product had the highest total Sales in 2014? Return the product name and total Sales. Use the sheet1 table and answer in English.

In this run, MOI returned Paseo, with total Sales of $27,096,396.87.

5. Inspect the generated SQL

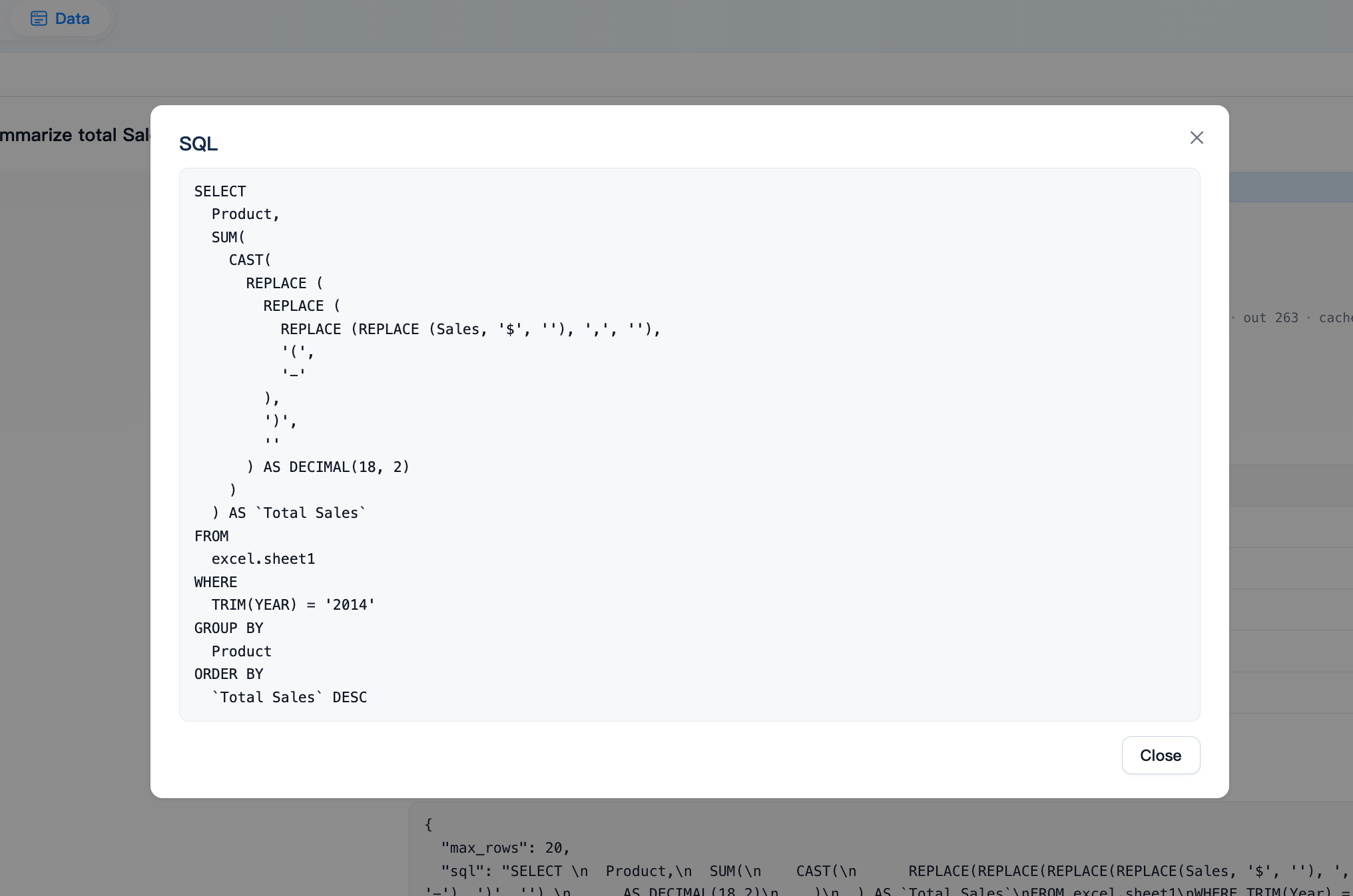

Expand Thinking and locate the SQL for the query. Open the SQL details to inspect the statement without needing to read or capture the entire execution trace.

For the second question, check that the SQL:

• reads excel.sheet1;

• filters Year to 2014;

• sums Sales by Product; and

• sorts total Sales in descending order.

The SQL in this example removes currency formatting from text values and casts each Sales value to DECIMAL(18, 2) before summing. Generated SQL may differ if your imported column types differ.

Precision note: Rounding each row before summing can differ from summing the original Excel values and rounding only the final total. For Paseo in 2014, the original workbook totals $27,096,396.86 when rounded at the end, one cent below the result shown here. When checking financial totals, use the same conversion and rounding rules on both sides.

Complete

You have imported an Excel workbook as a Catalog table, added its 700 data rows to a knowledge base, asked two questions in English, and inspected the generated SQL. You can continue with questions by country, product, market segment, or month using the same knowledge base.
