Improve knowledge base query accuracy with semantic configuration

MOI’s semantic layer sits between the database schema and natural-language Q&A, providing a business abstraction that can be governed and reused. It leaves the original table structure unchanged and organizes technical fields, business names, metric formulas, internal business codes, and query constraints into an executable semantic contract that informs SQL planning and execution. A general-purpose model may recognize common SAP fields such as NETWR, VBELN, and GBSTA, but the schema alone cannot tell it the company’s internal performance assessment rules, region codes, or the currencies that the knowledge base is allowed to query.

The sales order table in this tutorial contains three internal rules that cannot be inferred from the schema alone: assessed sales are calculated as 90% of NETWR for completed orders; VKORG = 1000/2000/3000 represents North China, East China, and South China, respectively; and sales analysis must use only CNY orders, because USD records must not be added directly to CNY records. You will first record the results without semantic configuration, then supply these three pieces of information through metrics, business rules, and mandatory constraints. Omitting any of these categories can produce incorrect calculations, incorrect region assignments, or results outside the permitted data scope.

What You Will Do

• Import a sales order CSV into Catalog and add it to a knowledge base.

• Configure metrics, business rules, and mandatory constraints.

• Ask the same sales analysis question before and after configuration to compare order statistics, region names, and currency scope.

Before You Start

• Prepare an MOI account and open the target workspace.

• Download the sample file semantic-sales-data.csv.

The screenshots show the Chinese interface. This tutorial uses English region names in the prompts and business rule: North China corresponds to 华北, East China to 华东, and South China to 华南 in the screenshots. Keep the CSV’s original field names and codes unchanged.

Steps

1. Import the Sales Order CSV

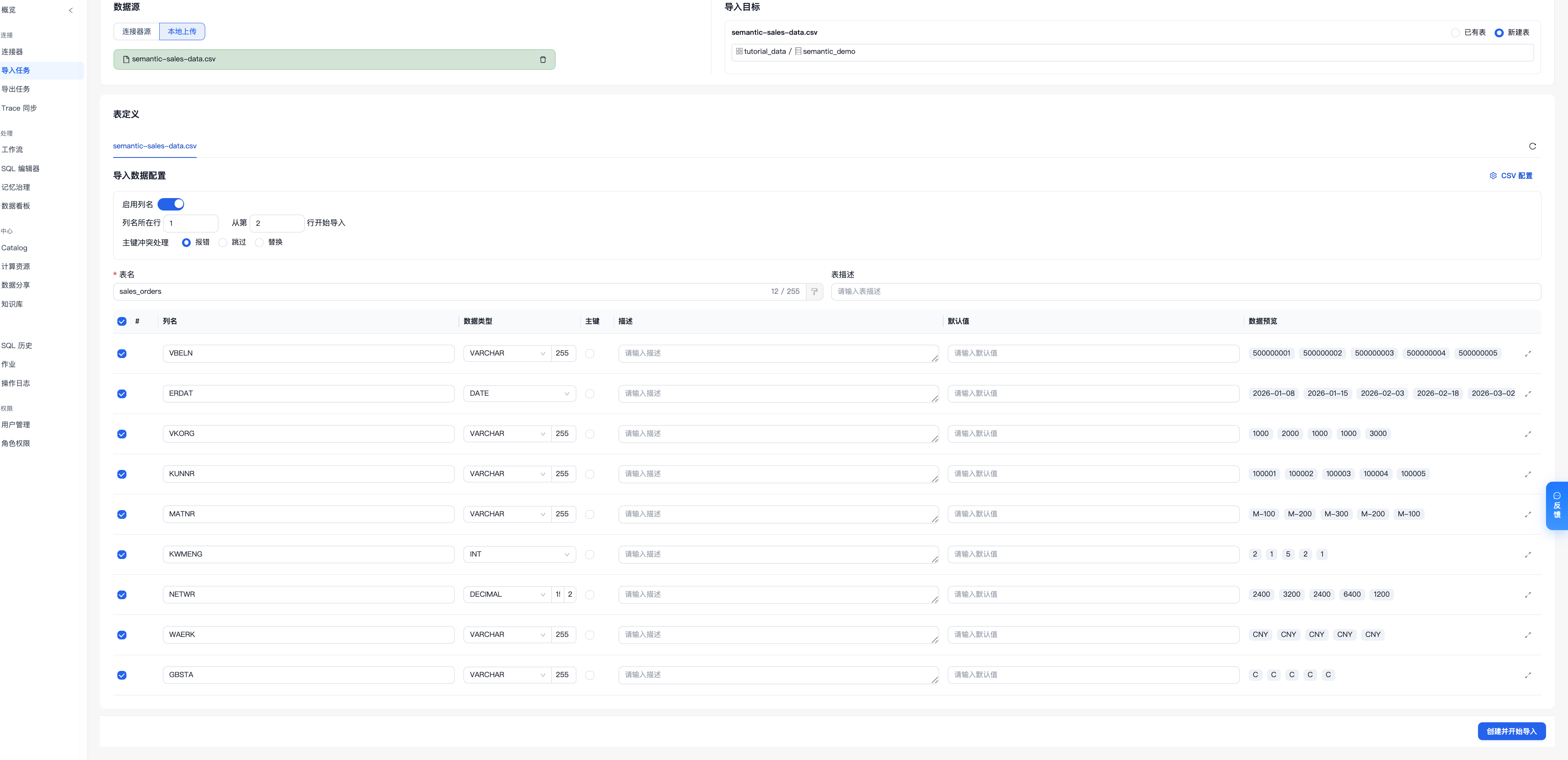

1. In the left navigation, go to Data > Import Tasks and click New Import Task.

2. Select Structured and Local Upload, then upload semantic-sales-data.csv.

3. Select New Table and enter the following target location:

   tutorial_data / semantic_demo / sales_orders


4. Confirm that the first row contains column names, and check that ERDAT is DATE, KWMENG is INT, and NETWR is DECIMAL(15,2). Keep the default settings for the other fields. In SAP, NETWR typically corresponds to the currency field type CURR(15,2).

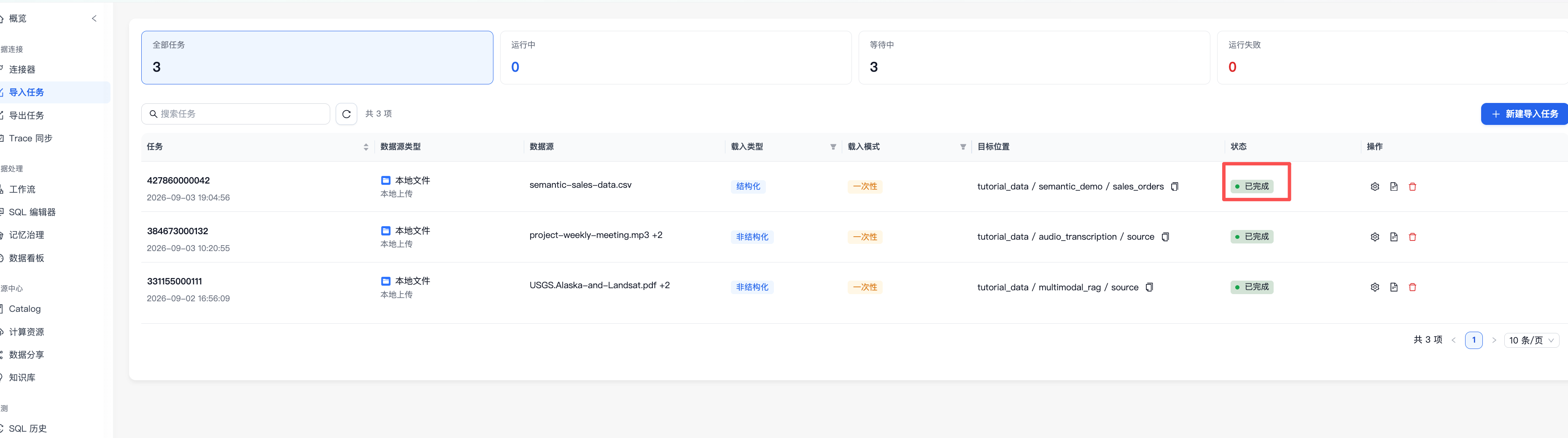

5. Click Create and Start Import and wait until the task status changes to Completed.



2. Create a Knowledge Base and Add the Table

1. Go to Resource Center > Knowledge Base and click Create Knowledge Base.

2. Enter the name sales_semantic_knowledge and the purpose: “Query sales performance data using the company’s management assessment rules.”

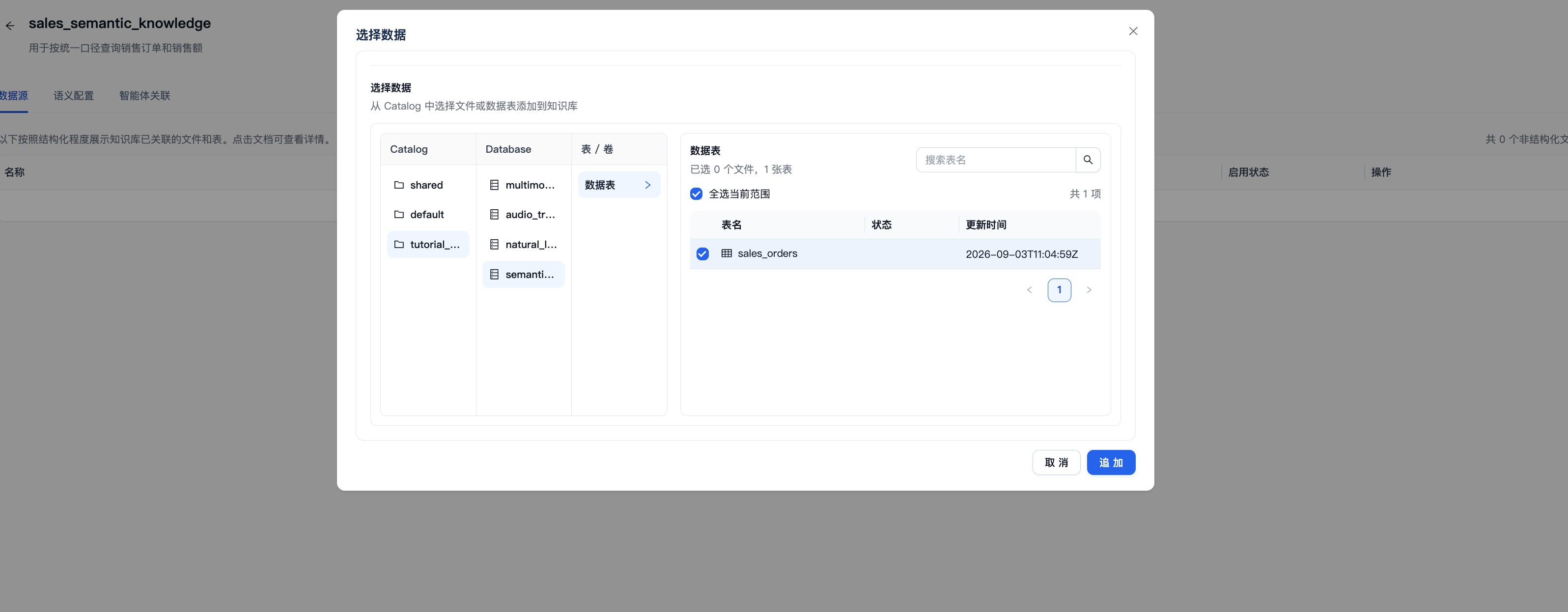

3. Open the knowledge base details, click Add Data, and select tutorial_data / semantic_demo / sales_orders.



4. Wait for data source processing to finish, then open Advanced Configuration > Semantic Configuration.

3. Record a Baseline Without Semantic Configuration

Leave semantic configuration empty for now. Open Chat for the knowledge base and send:

Calculate assessed sales, valid order count, and average assessed order value for the East China, South China, and North China business regions in the first quarter of 2026. Sort by assessed sales in descending order and display the business region names in the results.

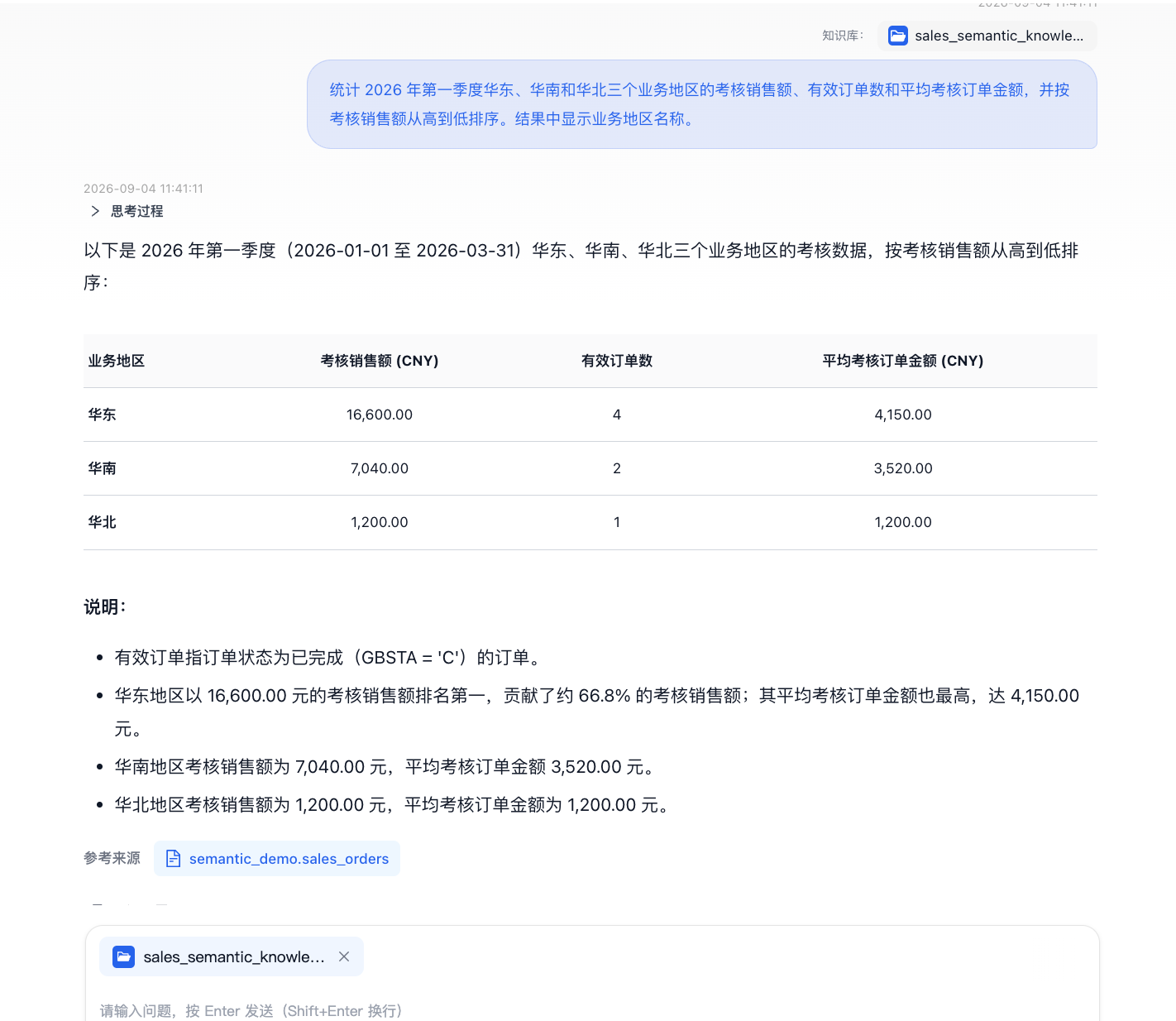

Record the answer and generated SQL:

Without semantic configuration, the system can only infer the business definitions from field names and common SAP knowledge. Pay particular attention to these three areas:

• Assessment metrics: The schema does not record the 90% assessment factor or specify that “valid orders” include only GBSTA = 'C'. The system may simply sum NETWR.

• Business regions: The schema does not record the company’s mapping of 1000 = North China, 2000 = East China, and 3000 = South China. The system may incorrectly infer the regions from the code order.

• Currency scope: The table contains both CNY and USD. Summing NETWR directly adds different currencies together, producing a net sales value with no business meaning.

Field types cannot resolve these issues. Use this result only as a baseline for comparison, not as a business conclusion.

4. Configure Metrics, Business Rules, and Mandatory Constraints

Return to Advanced Configuration > Semantic Configuration. Click New to the right of the relevant category and save one semantic entry at a time. Unless otherwise specified, select sales_orders as the associated table.

Metrics

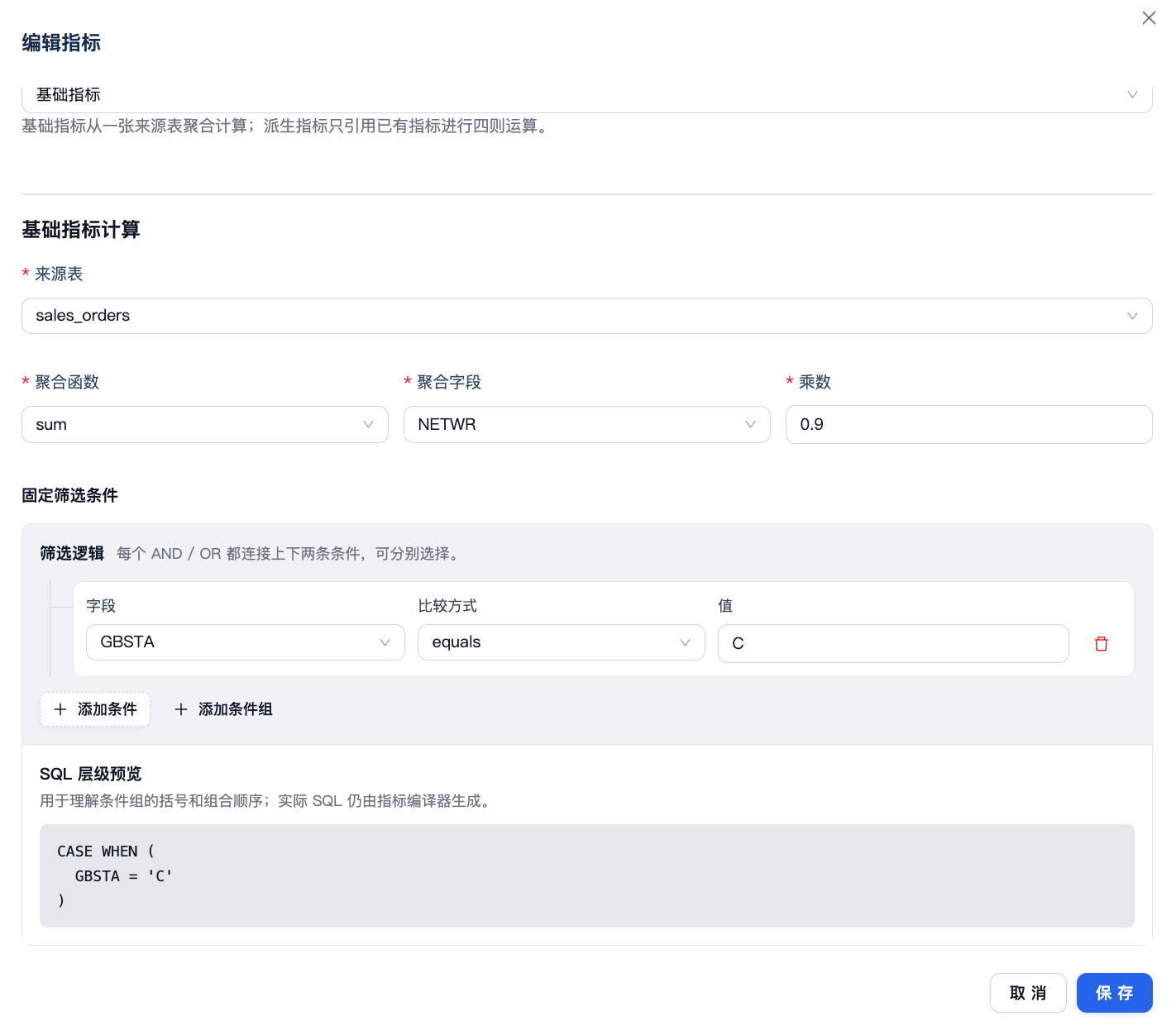

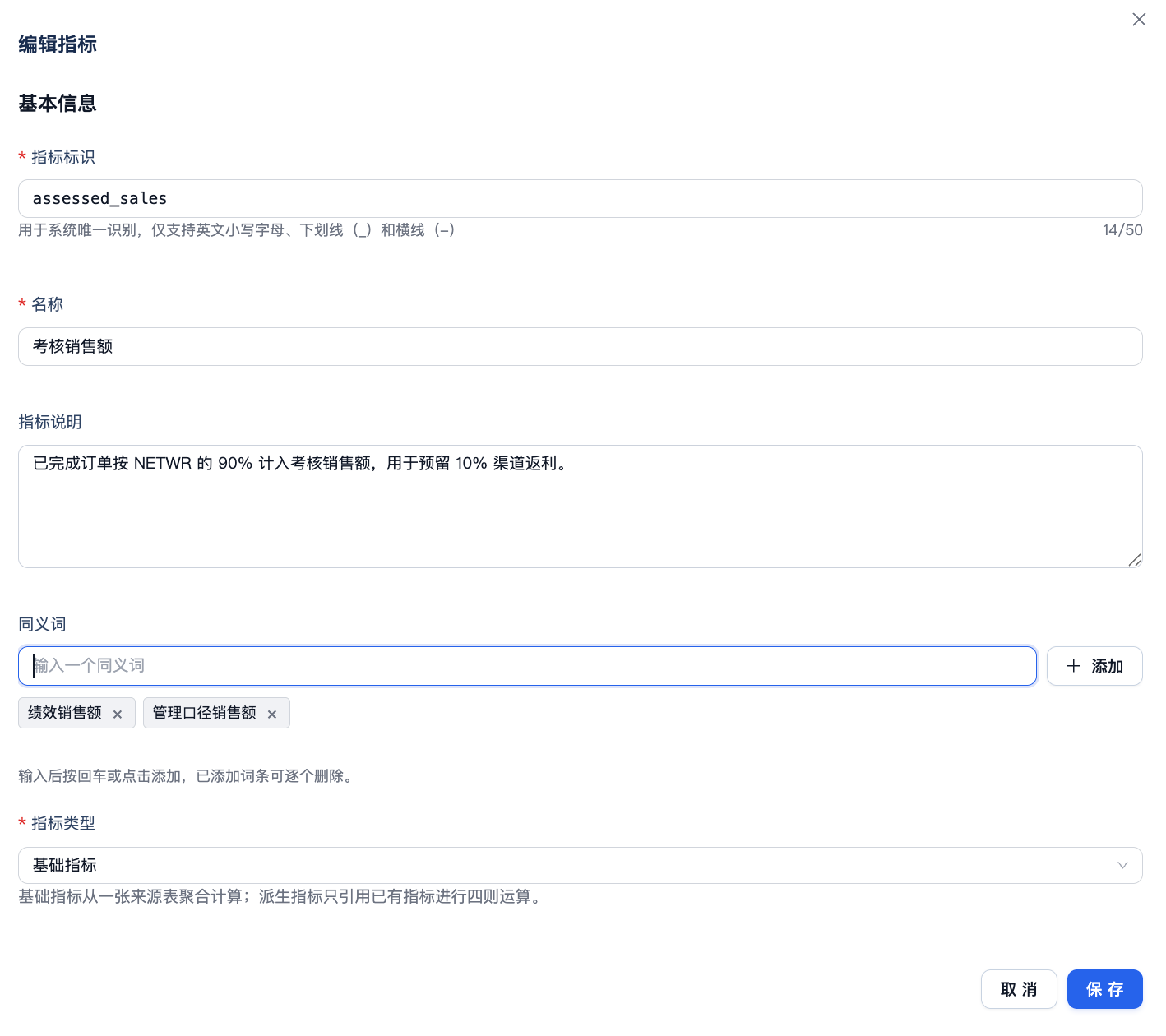

Click Metrics > New Metric and use the form to create the following three basic metrics. For each metric, enter the basic information, complete Basic Metric Calculation, and click Create.

Setting	Assessed Sales	Valid Order Count	Average Assessed Order Value
Metric Identifier	assessed_sales	valid_order_count	average_assessed_order_value
Name	Assessed Sales	Valid Order Count	Average Assessed Order Value
Metric Description	Count 90% of NETWR for completed orders as assessed sales, reserving 10% for channel rebates	Count completed sales orders	Apply a 90% factor to the average NETWR of completed orders
Synonyms	Performance sales, management-assessed sales	Completed order count, valid order volume	Average assessed transaction value, mean assessed order amount
Metric Type	Basic Metric	Basic Metric	Basic Metric
Source Table	sales_orders	sales_orders	sales_orders
Aggregation Function	sum	count	avg
Aggregation Field	NETWR	VBELN	NETWR
Multiplier	0.9	1	0.9
Fixed Filter	Field GBSTA, comparison equals, value C	Field GBSTA, comparison equals, value C	Field GBSTA, comparison equals, value C

Each row in the sample table represents one order, and VBELN values are unique, so the form’s count function can be used directly to count orders. All three metrics use a fixed filter to include only completed orders with GBSTA = 'C'. The 90% factor is the company’s management assessment factor after reserving 10% for channel rebates. It is absent from the database schema, so the correct assessed amounts cannot be obtained without configuring the metrics.

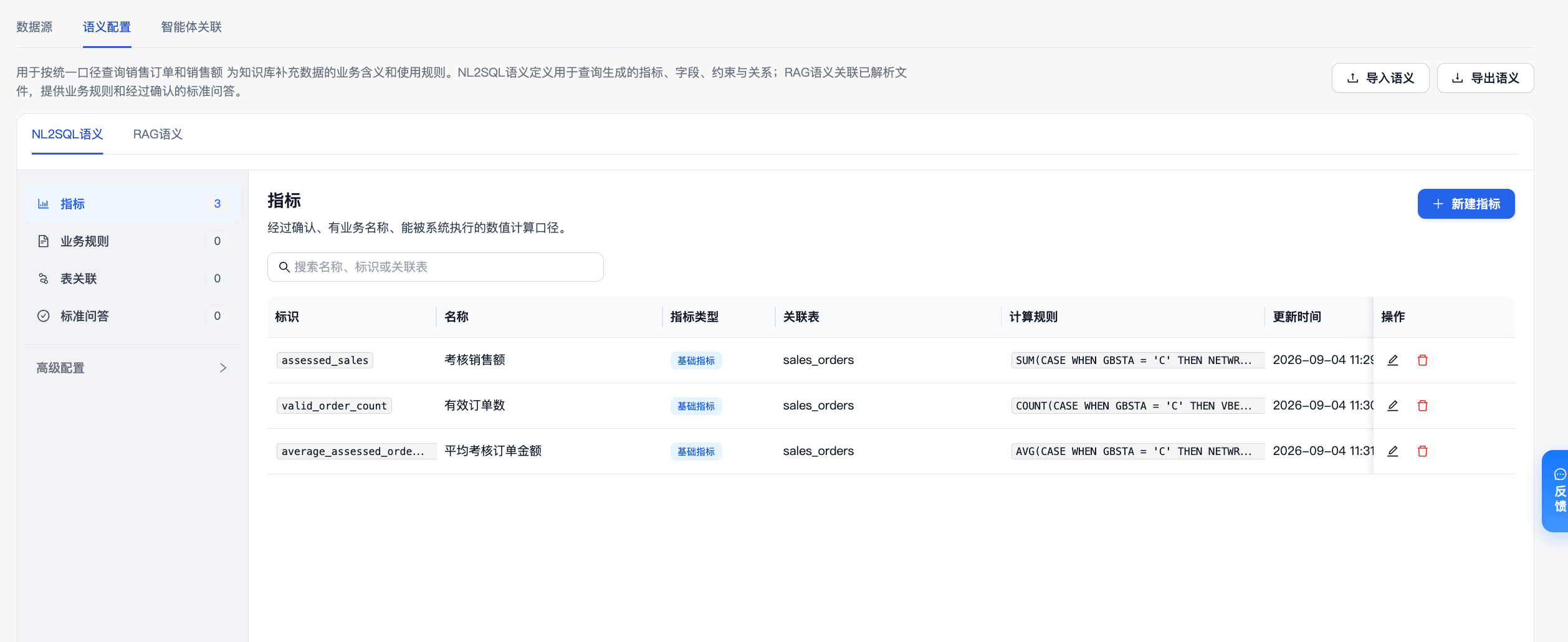

After creating the other two metrics using the table, return to the metric list and confirm that it displays assessed_sales, valid_order_count, and average_assessed_order_value.

Business Rules

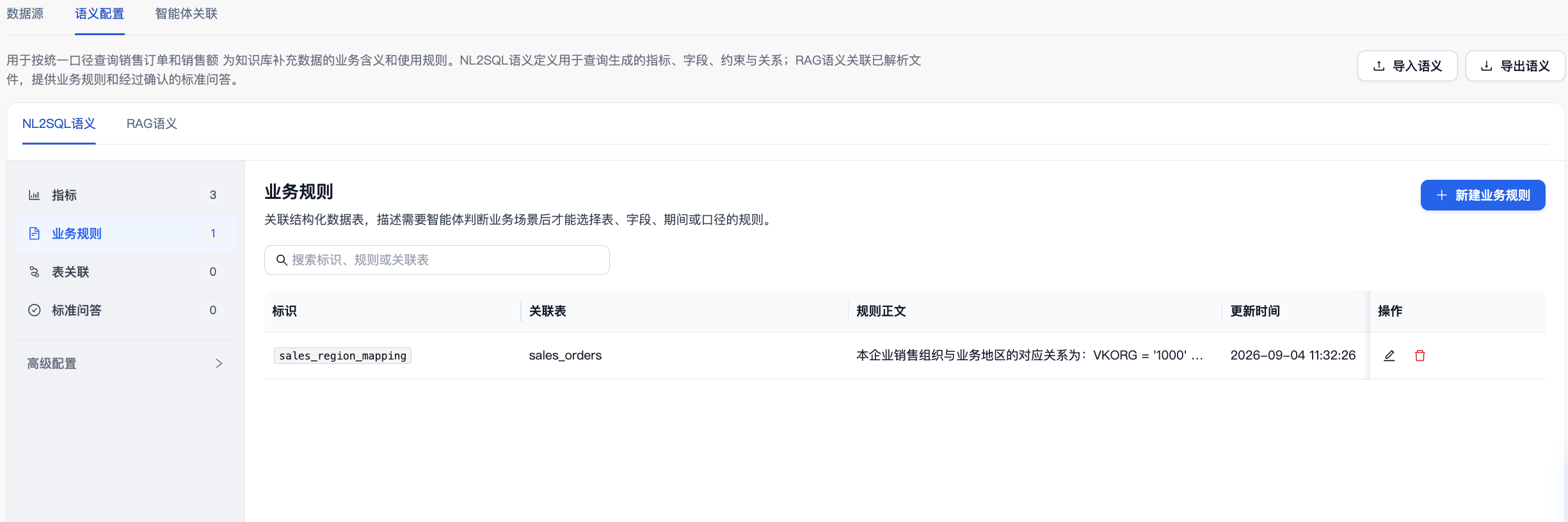

Click Business Rules > New Business Rule, fill in the following values, and create the rule:

Setting	Value
Business Rule Identifier	sales_region_mapping
Associated Table	sales_orders
Rule Content	The company’s sales organizations map to business regions as follows: VKORG = '1000' represents North China, VKORG = '2000' represents East China, and VKORG = '3000' represents South China. For queries involving regions, filter and group according to this mapping and display the business region names in the results.

Business rules explain internal business codes that the schema does not describe. This example deliberately uses a region mapping that cannot be inferred from the numeric order of the codes. Without this rule, the system may assign the wrong region even if it outputs region names in Chinese, as shown in the screenshots.

Mandatory Constraints

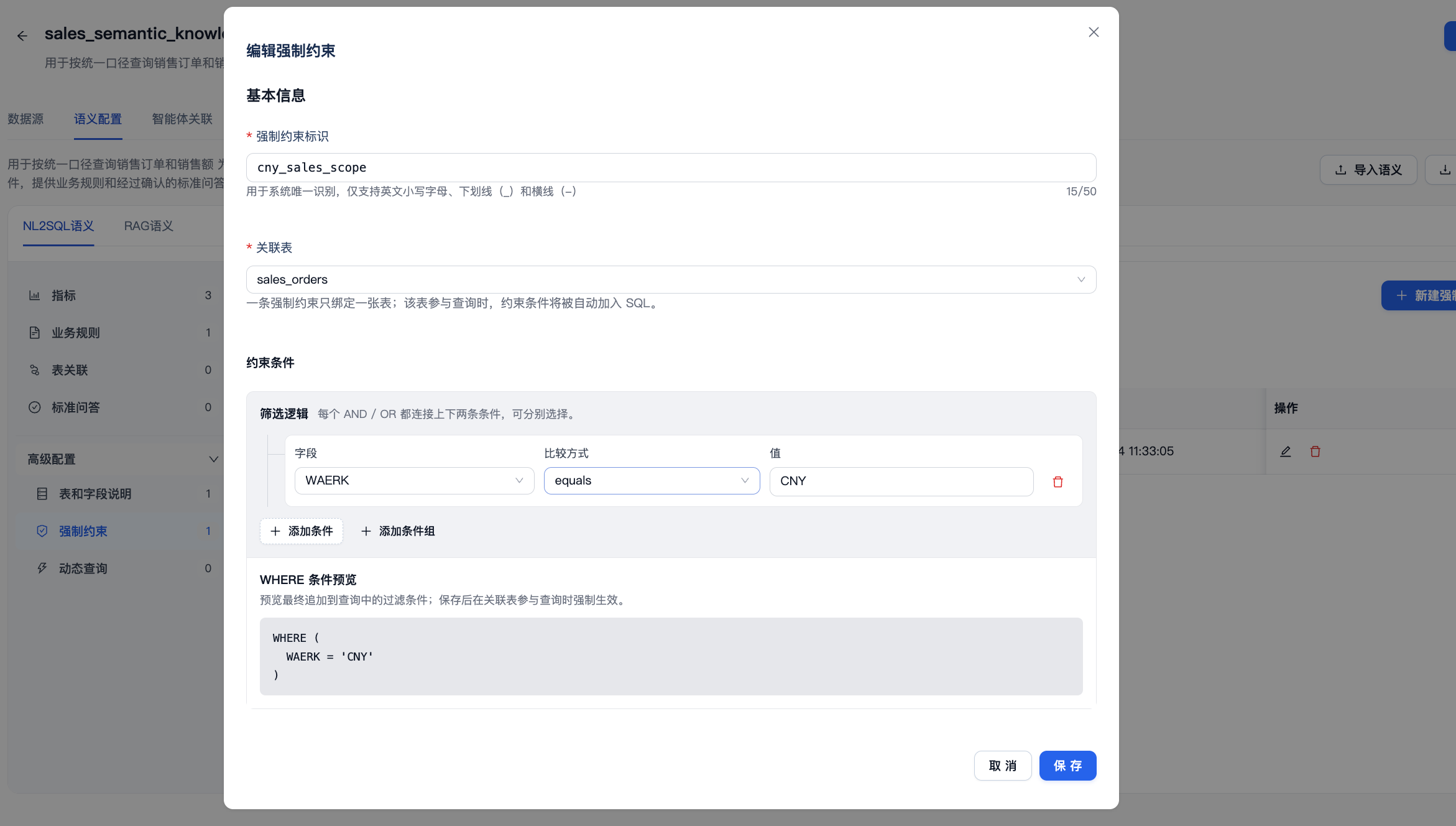

Click Advanced Configuration > Mandatory Constraints > New Mandatory Constraint, fill in the following values, and create the constraint:

Setting	Value
Mandatory Constraint Identifier	cny_sales_scope
Associated Table	sales_orders
Constraint Condition	Field WAERK, comparison equals, value CNY

The sample table contains USD orders. This constraint is added automatically whenever sales_orders participates in a query, preventing the direct addition of USD and CNY NETWR amounts. It defines the data scope that the knowledge base can query, serving a different purpose from metric formulas and the business rule’s region mapping.

After saving, run Validate in semantic configuration and confirm that every entry passes.

5. Verify the Metrics, Business Rules, and Mandatory Constraints

Return to the knowledge base Chat and send the question from Step 3 again.

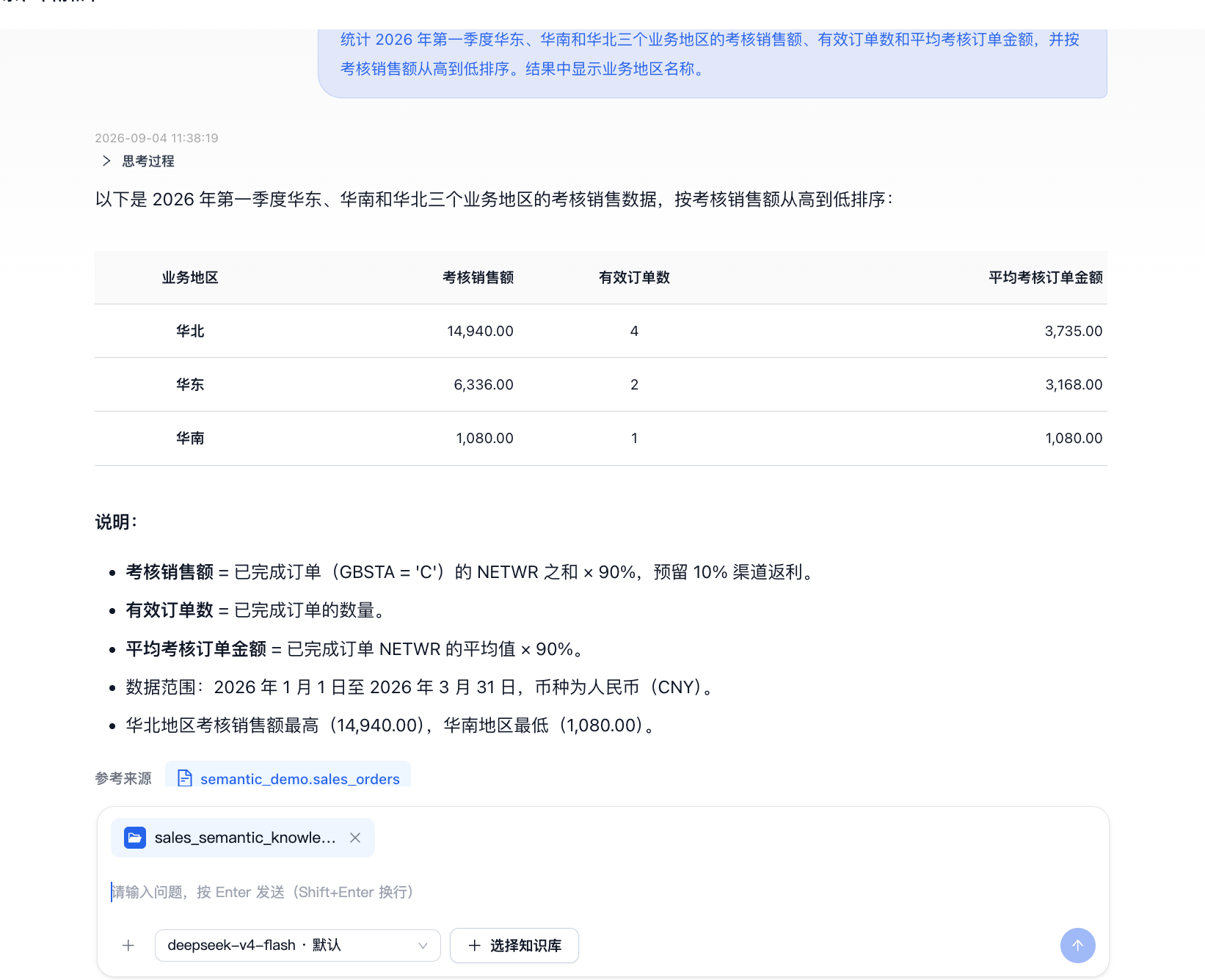

Check the answer and expand the reasoning details to inspect the SQL. After configuration, you should see:

• The definitions of assessed_sales, valid_order_count, and average_assessed_order_value are used.

• Assessed sales uses sum(NETWR) with a multiplier of 0.9; valid order count uses count(VBELN); and average assessed order value uses avg(NETWR) with a multiplier of 0.9.

• The query includes GBSTA = 'C'.

• The query groups by VKORG and displays 1000, 2000, and 3000 as North China, East China, and South China, respectively.

• The mandatory constraint automatically adds WAERK = 'CNY'.

• In descending order of assessed sales, the regions are North China, East China, and South China, with assessed sales of CNY 14,940, 6,336, and 1,080, respectively. Their valid order counts are 4, 2, and 1, and their average assessed order values are CNY 3,735, 3,168, and 1,080.

The metrics supply the 90% assessment factor, completed-order filter, and aggregation methods. The business rule provides the internal mapping from sales organizations to business regions. The mandatory constraint excludes USD data and limits the scope to CNY. Removing or omitting any one of these prevents the complete result above.

Missing Configuration	Observable Error
Metrics	The system may sum NETWR directly, omit the 90% assessment factor, or fail to restrict the metrics to completed orders.
Business rule	The system may guess that 1000/2000/3000 represents East China, South China, and North China in that order. The correct mapping is North China, East China, and South China.
Mandatory constraint	USD orders enter the totals. Even with the 90% assessment factor, North China’s assessed sales increases from the correct 14,940 to 15,840.

If the result still does not match expectations, check the semantic entries’ source tables, identifiers, metric fields, and filters, then validate again and repeat the question.

Tutorial Complete

Using a single CSV, you have completed the process from data import and knowledge base modeling to a comparison of Q&A results. This example shows that an SAP schema provides the technical structure, while metrics, business rules, and mandatory constraints supply the complete business context needed for natural-language data Q&A results that can be explained and verified.
